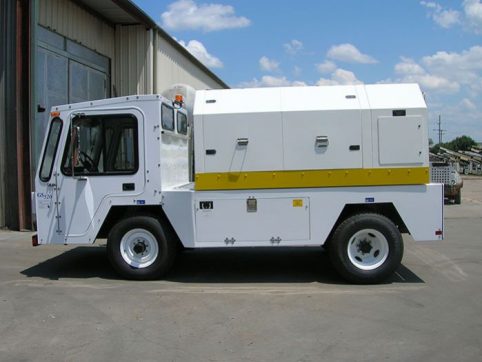

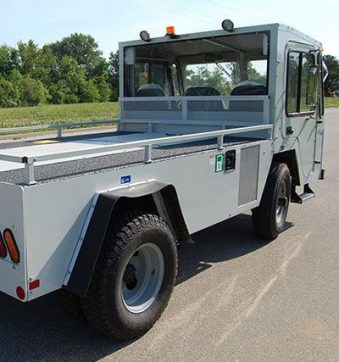

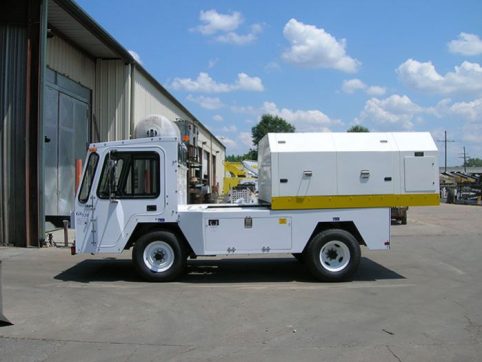

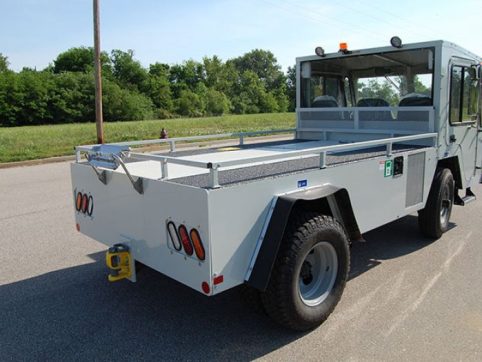

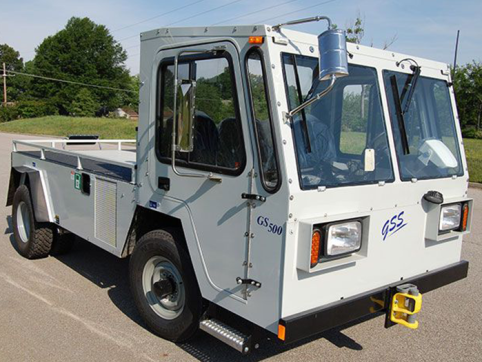

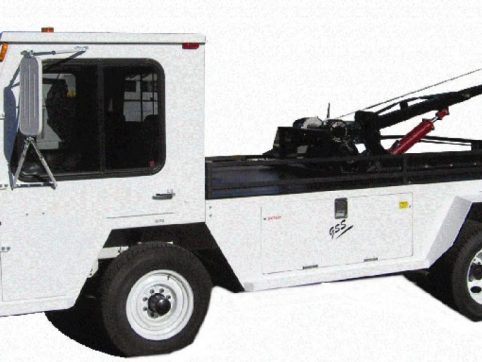

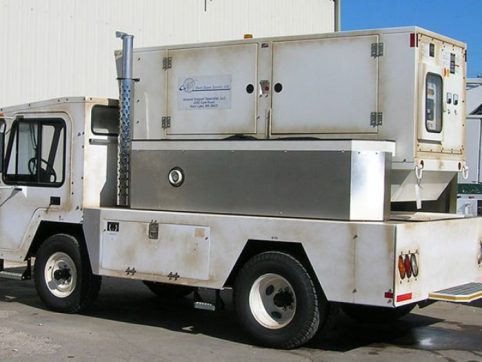

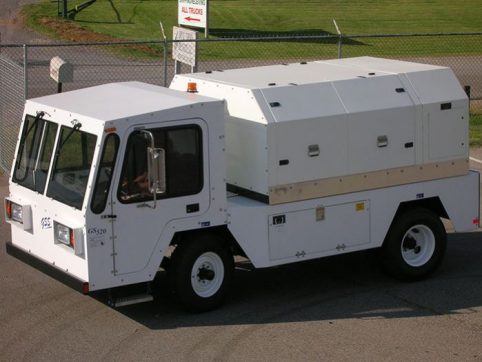

GS500 Custom High Speed Tractor
Rugged Reliability, Excellent Serviceability, High Load Capacity
The GS500 is a high speed tow vehicle designed to meet a variety of needs in airline GSE applications.
10,500 – 13,000 lbs. GVWR
Multiple Power Train Options
Cab Air Conditioner
Rotating/Flashing Beacon
Back-up Alarm
60 + sq. ft. of Flat Deck
Custom Deck Layouts
Multiple Vehicle Lengths
Multiple Wheel Bases
Optional Power Trains
Multi-Purpose Chassis
EPA/CARB Certified
Dimensions:
Vehicle Length 184.0 in. 467 cm.
Vehicle Width 78.0 in. 198 cm.
Vehicle Height 78.0 in. 198 cm.
Ground Clearance 8.75 in. 22 cm.
Deck Length 120.0 in. 305 cm.
Deck Width 74.0 in 188 cm.
Deck Height 39.0 in. 102 cm.
Vehicle Specifications:
GVWR 10,500 lbs / 13,000 lbs 4763 kg. / 5897 kg.
Wheel Base 101.0 in 256 cm.
Engine Perkins 404D-22T/CAT 2.2T
Advertised BHP 60hp @ 2800 rpm
Peak Torque 190 lb.ft.@ 1800 rpm
Cooling System Liquid 50/50 Anti Freeze
Transmission Ford C-6
Electrical System 12V, Neg Ground
Steering Hydrostatic
Front Axle Dana 70-DF
Front GAWR 5,700 lbs. 2585 kg.
Front Suspension Multi-Leaf Springs
Rear Axle Dana 70-B
Rear GAWR 7,500 lbs. 3402 kg.
Gear Ratio 7.17
Rear Suspension Multi-Leaf Springs
Wheels 16 in. x 6 in.
Tires 225/75R16
Brakes Front Disc,/ Rear Drum 98 cm.
Fuel Tank 28 Gallon 106 Liters
Frame Width 38.5 in 467 cm.
2495 kg. / 3629 kg
Vehicle Weight 5000 lbs 2268 kg
Deck Capacity 5,500 lbs. / 8,000 lbs 2495 kg. / 3629 kg
Optional Equipment:
Platform Work Lights
GPU
Refueler
Nitrogen Filler Unit
Oxygen Filler Unit
Hydraulic Test Unit
Unit for Heater
Dual/Single Tank Fuel Bowser.
