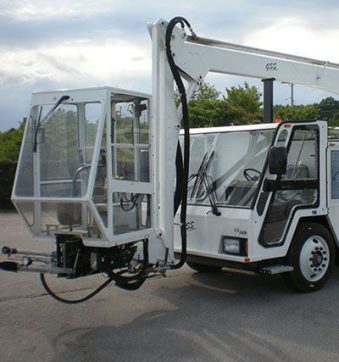

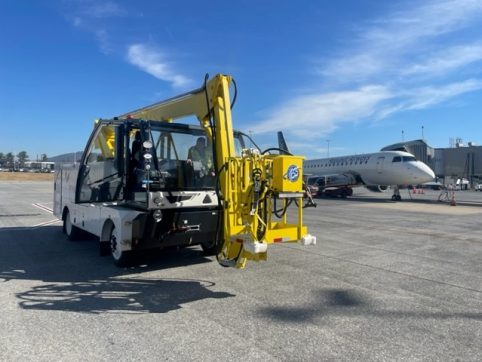

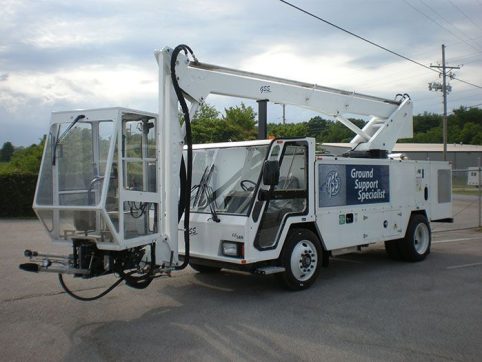

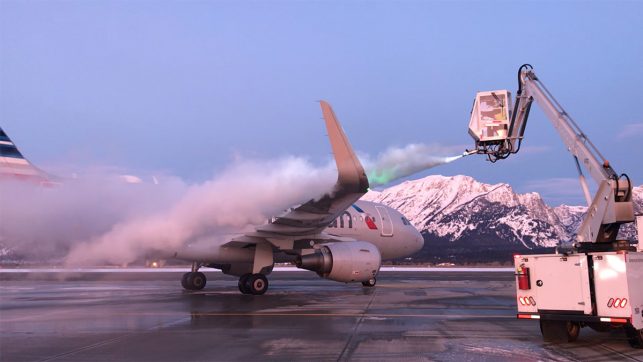

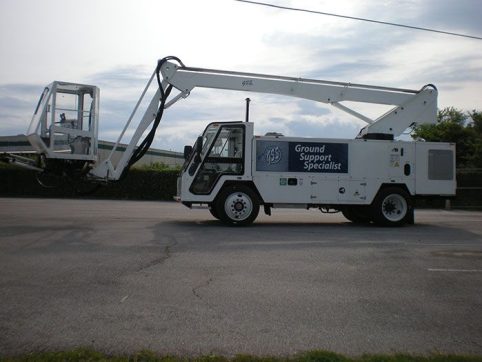

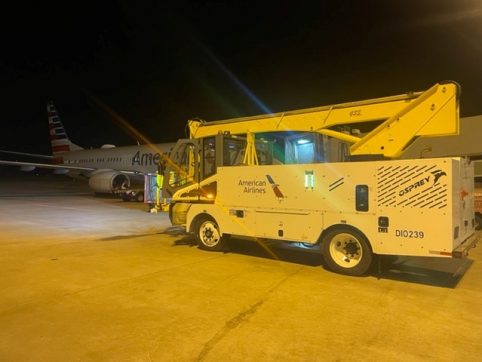

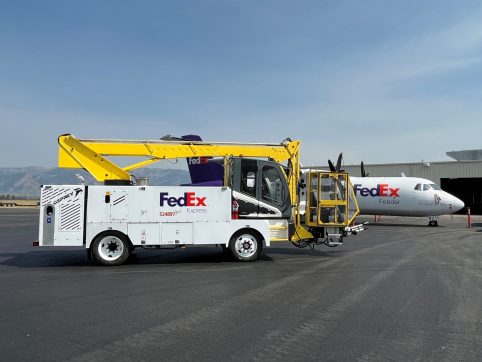

OSPREY 1400
Emergency stops in cab and basket.
Emergency hydraulic pump control in basket and ground control station.
Boom control in basket and ground control station.
High Speed Cutout When Boom is Raised.
Driver/Passenger seat belts.

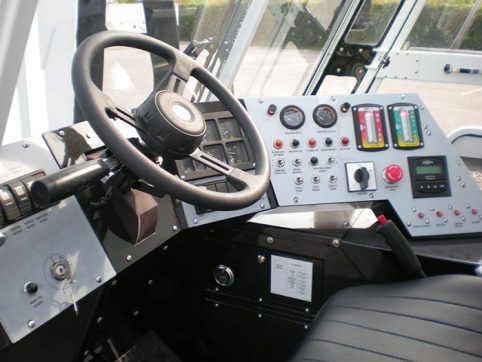

Dedicated Custom Chassis800, & 1400 Gallon Capacity (Type I & IV)Mini-Max “Quick Heat System” 980,000 BTU 12VJoystick ControlsSingle Diesel Engine (Swing out Module)Designed for commuter & narrow body aircraft – Up to 34’6″ Working Height
Dimensions:
Length 30 Ft. 7 In. (9.3 m)
Width 7 Ft. 8 In. (2.3 m)
Wheelbase 11 Ft. 3 In. (3.4 m)
Height (Boom Retracted) 11 Ft. 2 In. (3.4 m)
GVW Empty Tanks 14400 lbs. (6532 kg)
GVW Full Tanks 25,700 lbs. (11658 kg)Cal
Vehicle Specifications:
Fluid Tank (De-Ice) 1200 US gal.
Fluid Tank (Anti-Ice) 200 US gal.
De-Icing Fluid Pump Myers I2C-20
Anti-icing Fluid Pump Hardi Rotary Pump 363
Fluid Delivery (De-Ice) 20-30GPM(76-114L) / 150 psi
Fluid Delivery (Anti-Ice) 20 GPM (76L) / 40 psi
Air Delivery (De-Ice) 400 CFM @ 10 PSI 32 Lb./Min. @ Mach 0.89
Quick Heat System Pre-Heat to Deice Time 12 VDC. 980,000 BTU Approx 20 min.

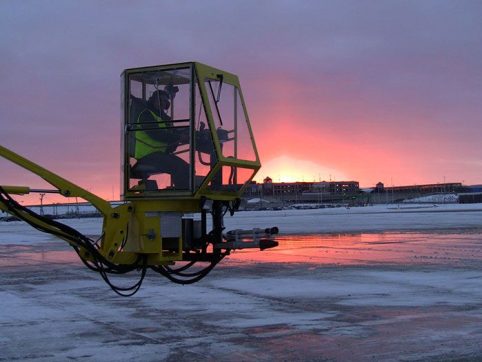

Basket Enclosed Manually Operated
Chassis: Custom to Spec.
Drive System Hydrostatic / Dynamic Braking
Engine Perkins 1104TD Diesel
Fuel Diesel / 50 gal. (189 L)
Maximum Speed 20 mph (32km/hr)
Max Deicing Speed 3 mph (5km/hr)
Aerial Device: Articulating Boom
Max Working Height 35ft.(10.7 m)
Optional Equipment:
Caterpillar 2.2 Diesel
Cummins 3.3 Diesel
Hardi 363 De-Icing Fluid Pump
Type IV fill system
In Cab Flow Meters
Fire extinguisher mounted on unit
Full body safety harnesses
Dual Heater Option
Frost Gun
Remote Tank Level Gauges
