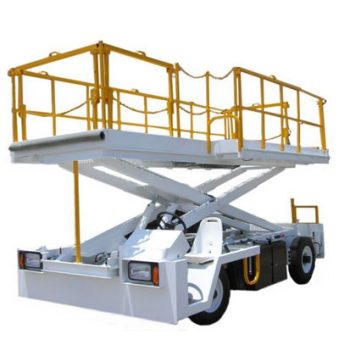

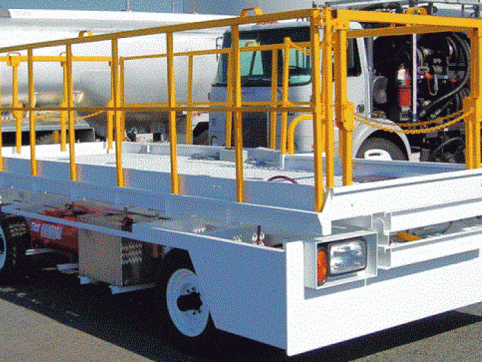

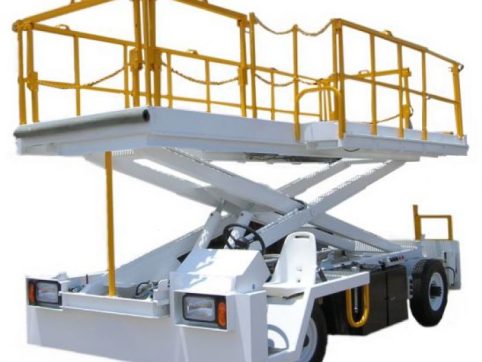

GS600 Maintenance Lift
The GS600 is a purpose built chassis mounted maintenance lift designed to meet a variety of needs in airline ground support applications. The GS600 combines a proven scissor arms and platform with a rugged custom built chassis.
Fold Down Platform Rails
Movable, Removable Platform Control Box
Scissor Maintenance Prop
Descent Alarm
Front and Rear Hydraulic Stabilizers
Platform Height 16 ft
Pendant Control Box
Descent Alarm
Front & Rear Stabilizers
Power Train Options
EPA/CARB Certified
Vehicle Specifications:
Platform Height Elevated 16 ft
Platform Height Lowered 3 ft. 6 in.
Platform Railing Height 42 in.
Platform Size 84.0 x 168.0 in.
Platform Capacity 2000 lbs.
GVWR 10,500 lbs
Max Vehicile Speed Adjustable to 25 Mph
Wheel Base 101.0 in.
Engine Perkins 404D-22T/CAT 2.2T
Advertised BHP 60hp @ 2800 rpm
Peak Torque 190 lb.ft.@ 1800 rpm
Cooling System 120 deg F. Ambient
Transmission Ford C6
Electrical System 12V, Neg Ground
Steering Hydrostatic
Front Axle Dana 70-DF
Front GAWR 5,700 lbs.
Rear Axle Dana 70-B
Rear GAWR 7,500 lbs.
Gear Ratio 7.17
Wheels 16 in. x 6 in.
Tires 225/75R16 / Pending
Brakes Front Disc, Rear Drum
Fuel Tank 28 Gallon
Optional Equipment:
Platform Work Lights
Platform Rail Mounted Bumper Padding
Hitches
Back-up Alarm
Rotating/Flashing Beacon
